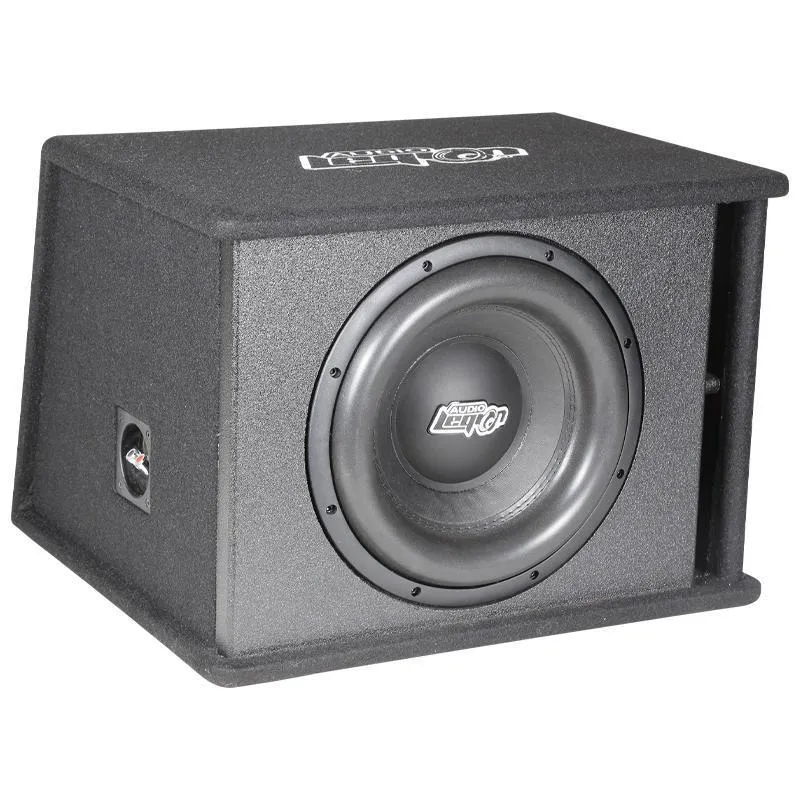

Audio Legion’s ARM1X12D2 is a ported enclosure featuring a single 12" Armada Series subwoofer. Conservatively rated at 1,200 watts peak power and 600 watts RMS power, the Armada single 12 enclosure is sure to deliver the deep, low-end frequency response your vehicle deserves time and time again. Utilizing a dual 2 ohm Armada 12" subwoofer, the ARM1X12D2 has a final impedance of 1 Ohm at the terminal.
The Armada 12 subwoofer boasts a double stitched high-roll foam surround, competition-grade reinforced paper cone and spring-loaded chrome terminals. Featuring a 2.5” high-temperature 4-layer voice coil and a 98 oz. ferrite motor system, the Armada 12 is capable of 14.5mm excursion and 85.3dB sensitivity. The enclosure is built with 3/4" commercial grade MDF and reinforced internal bracing. On its exterior, the enclosure is covered with premium black carpeting. The face of the enclosure is coated with a bed liner finish for enhanced durability and a rugged finish. This enclosure pairs perfectly with the . This ported enclosure comes wired and ready for installation. Simply hook up power to the spring-loaded terminals and you'll have incredible bass in no time.
- 12" Armada Series Single Subwoofer Ported Enclosure
- 1 Ohm Impedance at Terminal
- Peak Power: 1,200 Watts
- RMS Power: 600 Watts
- Sensitivity: 85.3dB (D2)
- Frequency Response: 28Hz - 300Hz
- 2.5" 4-layer Voice Coil
- 98 Oz. Motor System
- Competition-Grade Pressed Paper Cone
- High Roll Double Stitched Foam Surround
- 14.5mm Max. Excursion
- CMS: 0.15 (D2)
- QMS: 4.97 (D2)
- QES: 0.48 (D2)
- QTS: 0.43 (D2)
- VAS: 48.9 (D2)
- FS: 28Hz (D2)
