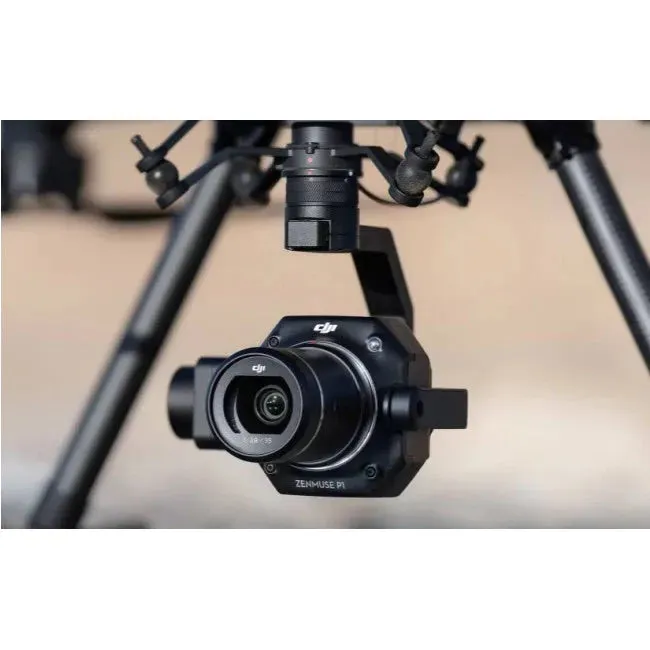

The DJI Zenmuse P1 full-frame camera designed for the Matrice 300/350. The DJI Zenmuse P1 is a groundbreaking aerial surveying tool that integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for high-efficiency photogrammetry flight missions, the P1 sets a new standard in aerial surveying, offering both accuracy and speed. It is an ideal solution for various applications, including topographic mapping, cadastral surveying, AEC, and more.

Key Features:

• High Precision: Achieves 3 cm horizontal and 5 cm vertical accuracy without Ground Control Points (GCPs).
• Exceptional Efficiency: Covers 3 km² in a single flight, capturing data quickly and effectively.
• 45 MP Full-frame Sensor: Ensures detailed and clear imagery for accurate mapping and surveying.
• Smart Oblique Capture: Automatically captures images from necessary angles, enhancing the efficiency of oblique photography missions.
• Global Mechanical Shutter: Minimizes motion blur and ensures sharp images even at high speeds.
• TimeSync 2.0: Synchronizes time across modules at the microsecond level for precise data capture.

Specifications:

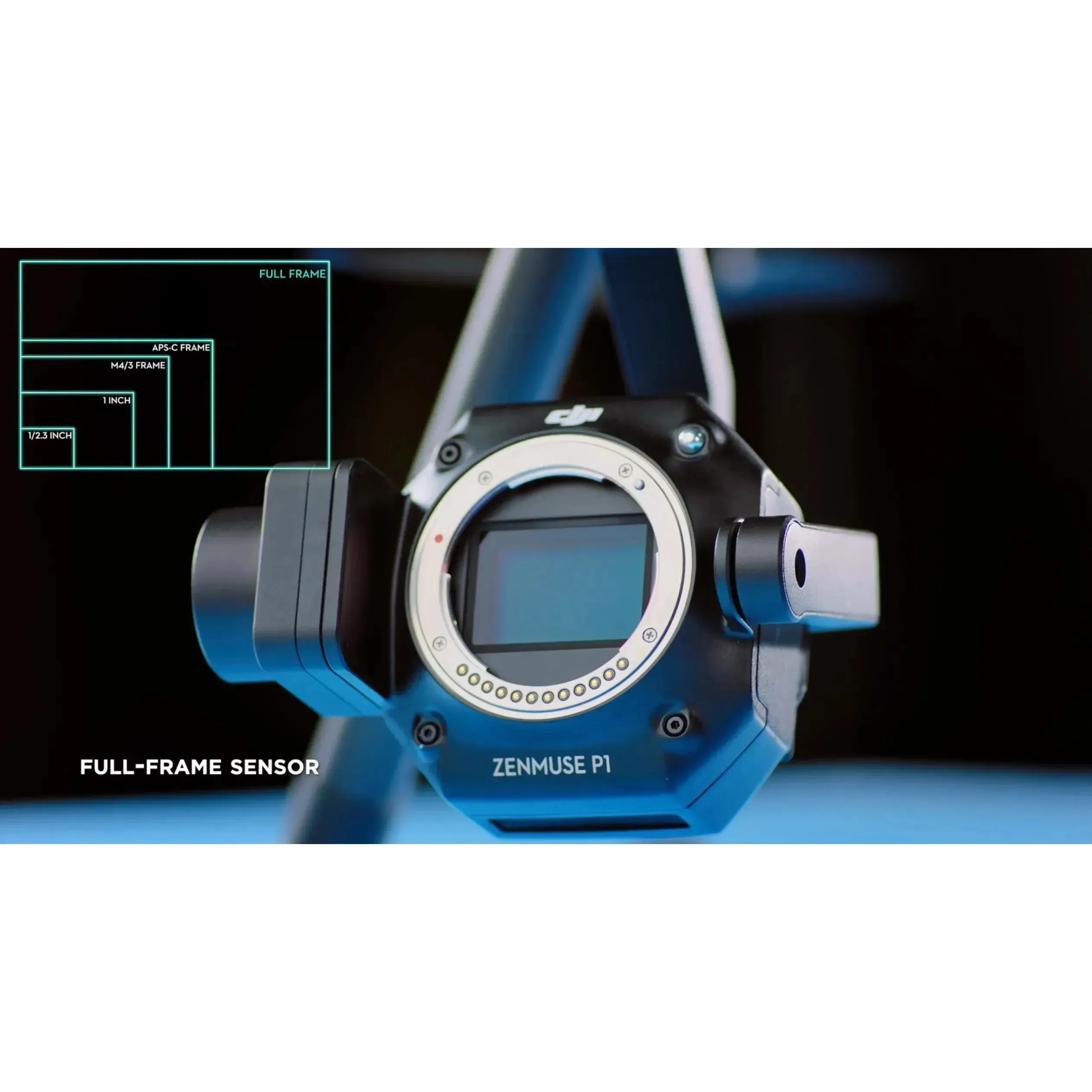

• Full-frame Camera: 45MP sensor with a 4.4μm pixel size.

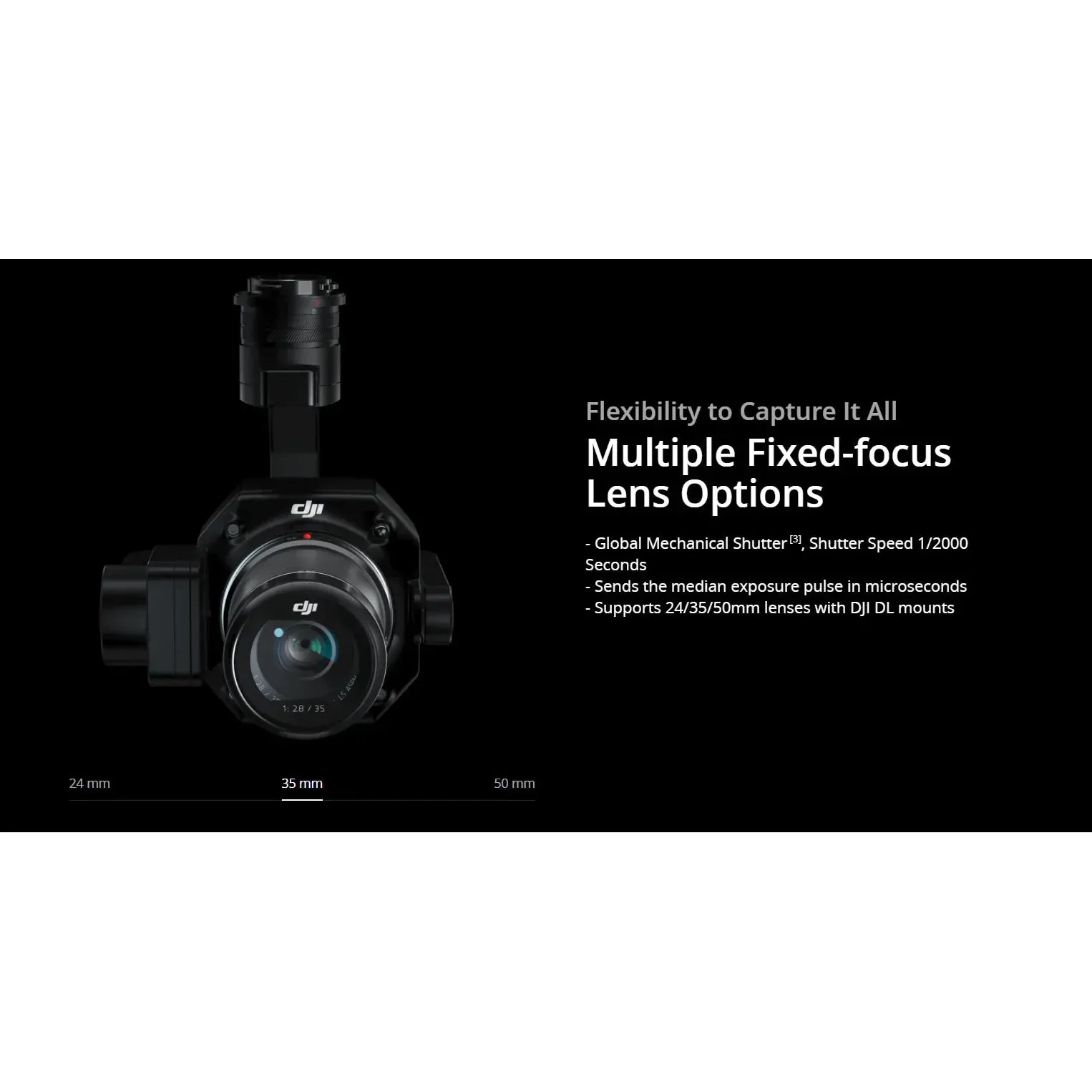

• Lens Options: Supports 24/35/50mm lenses with DJI DL mounts.
• Shutter Speed: 1/2000 seconds.
• IP Rating: Suitable for various weather conditions.

Applications:

• The Zenmuse P1 is perfect for professionals in surveying, construction, natural resource management, geological investigation, and disaster site modeling.

Additional Information:

• The P1 is designed to work seamlessly with the Matrice 300 RTK and DJI Terra, forming a comprehensive solution for aerial surveying and photogrammetry.

The DJI Zenmuse P1 is a versatile and powerful tool for aerial surveying, offering unparalleled efficiency and accuracy in photogrammetry missions.
