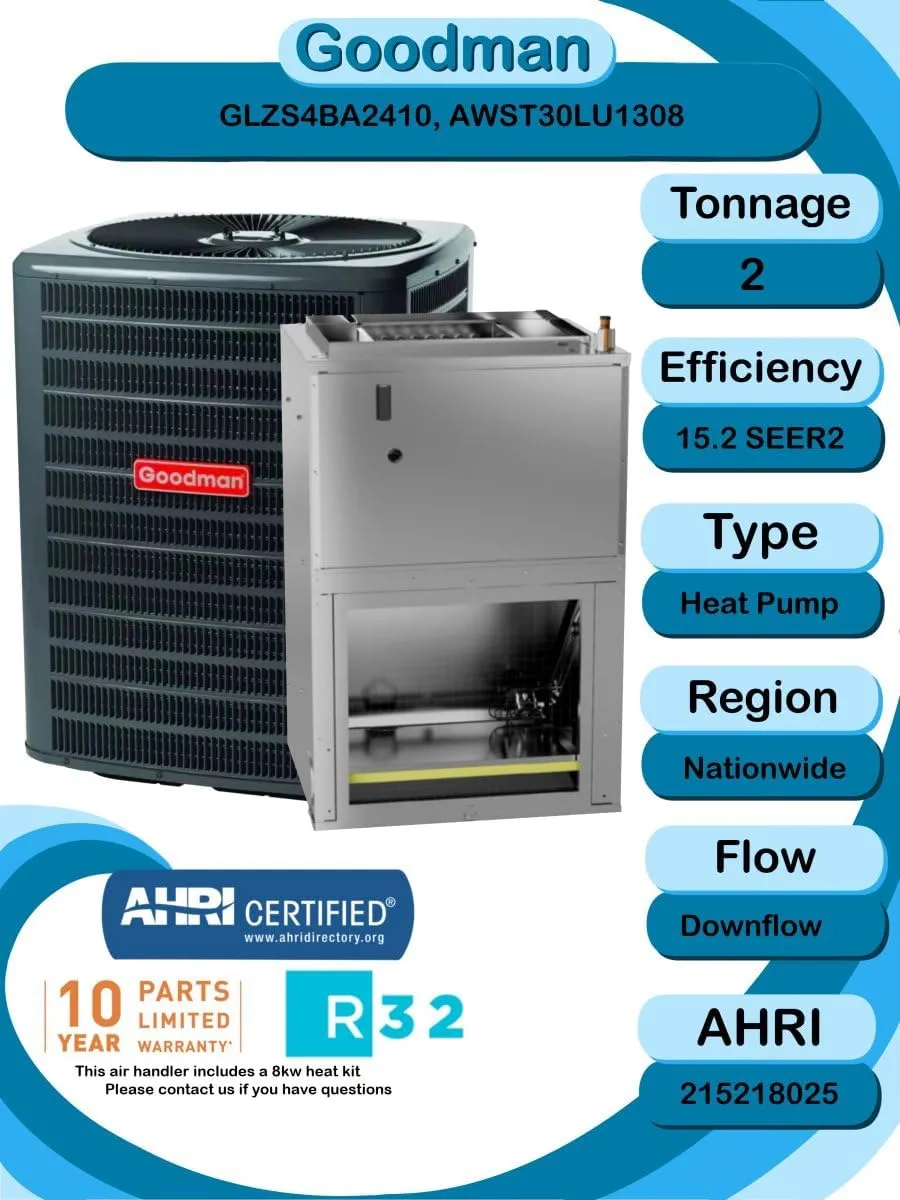

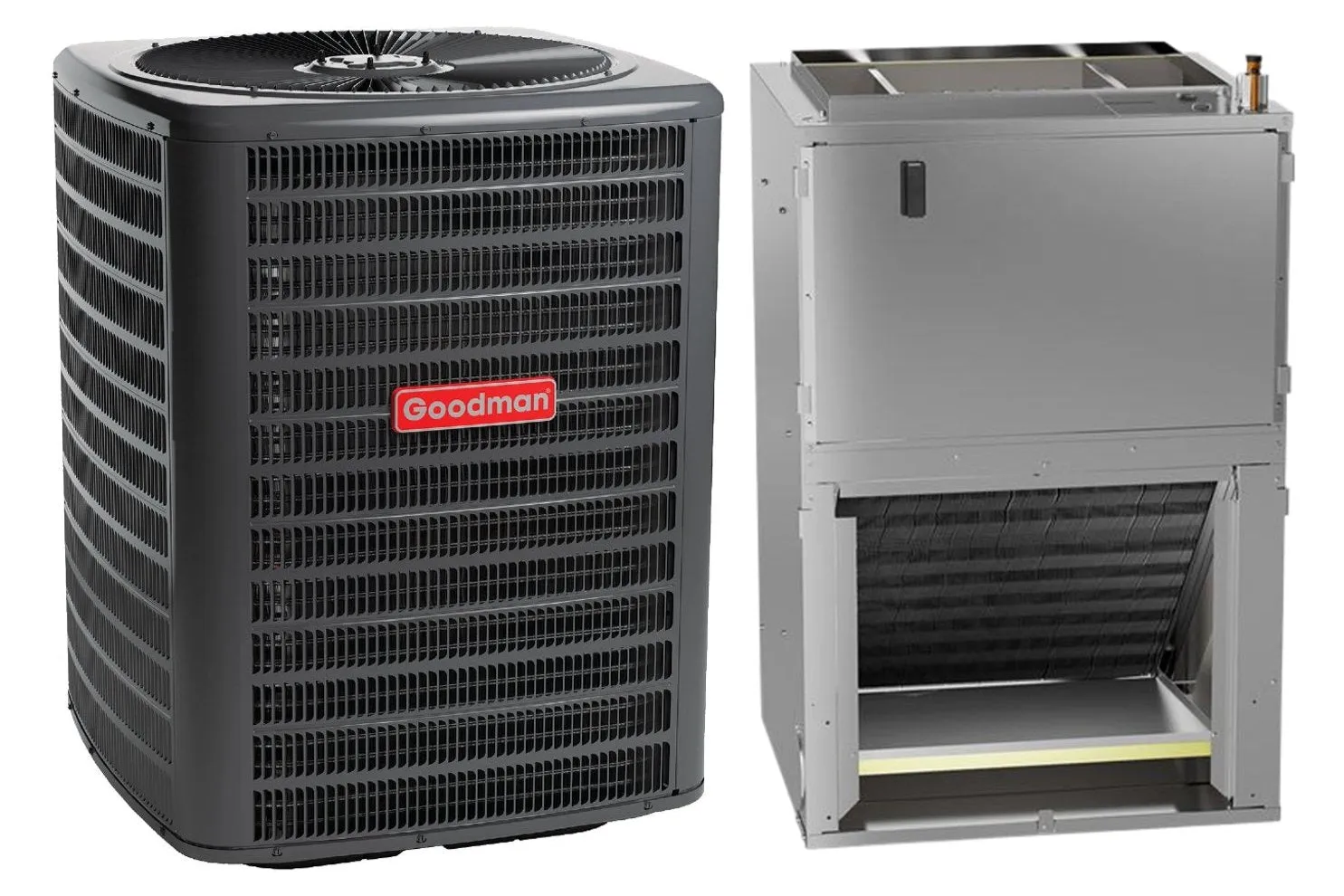

Goodman 2 Ton 15.2 SEER2 R-32 Heat Pump System and Front Return Air Handler with 8kW Heat Kit (GLZS4BA2410 Condenser and AWST30LU1308 Wall Mount Air Handler)

High-Performance Bundle: Discover the power of the Goodman HVAC 2 ton GLZS4BA2410 heat pump condenser and AWST30LU1308 wall-mounted air handler bundle. With a system SEER2 rating of 15.2, this bundle combines advanced features like an energy-efficient compressor, copper tube/enhanced aluminum fin coil, and internal thermal expansion valves for reliable cooling, durability, and energy savings.

Superior Performance & Reliability: The GLZS4BA2410 heat pump features an efficient copper tube/enhanced aluminum fin coil, a suction-line accumulator, a compressor crankcase, and service valves for easy maintenance. It comes fully charged with enough refrigerant for 15ft of lineset for a simplified installation process and is AHRI Certified and ETL Listed.

Efficient Comfort & Easy Setup: Experience energy-efficient indoor comfort with the GLZS4BA2410. Its single-speed condenser fan motor ensures consistent airflow for optimized performance. The unit comes pre-charged with refrigerant for a seamless installation process. Contractors will appreciate the convenient large screw lugs for secure wiring and easy connection of the ground wire.

Efficient Cooling: The AWST30LU1308 R-32 only air handler features internal factory-installed thermal expansion valves that optimize cooling, ensuring efficient operation. The unit is equipped with appropriately sized evaporator coil tubes, ensuring effective transfer and improved cooling performance. Featuring a direct-drive, multi-speed ECM blower motor, ensuring efficient airflow, enhanced comfort, and energy efficiency.

Note: The Goodman AWST30LU1308 air handler can be installed in a front return configuration only. This system is registered with AHRI under certificate number 215218025.

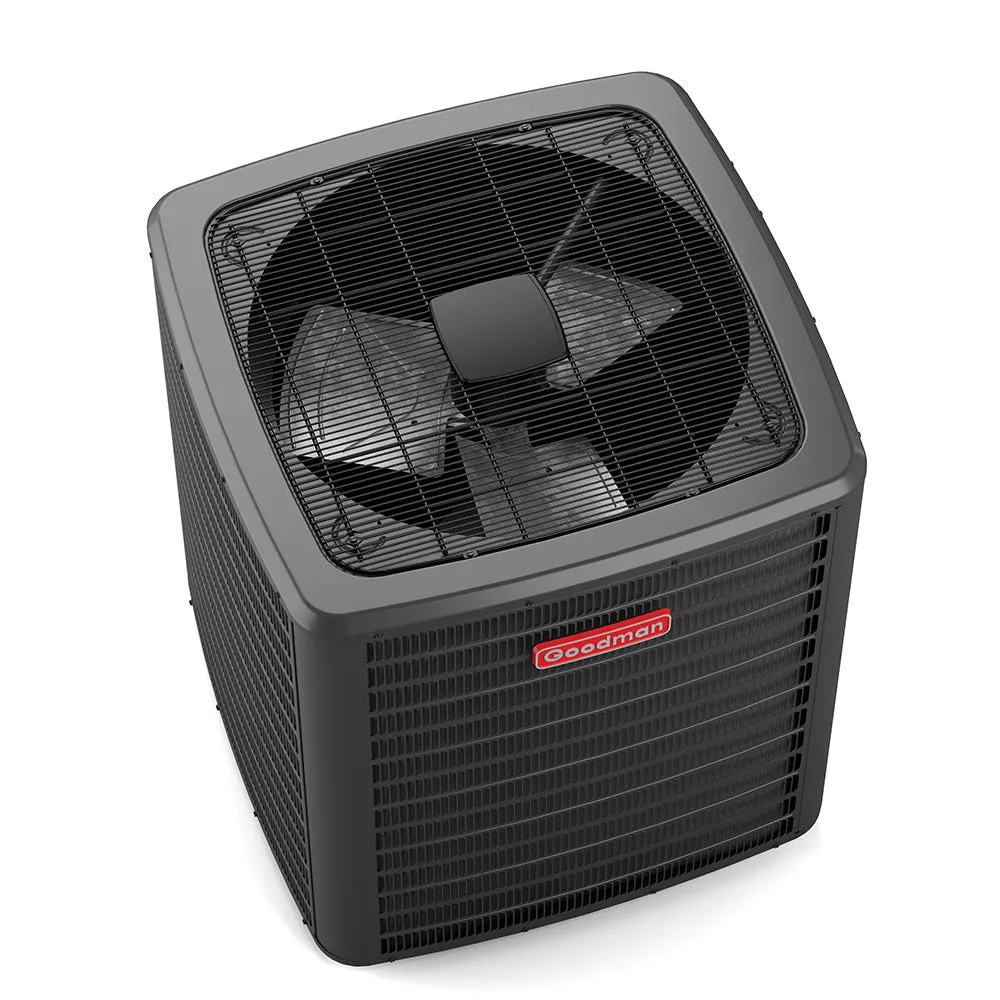

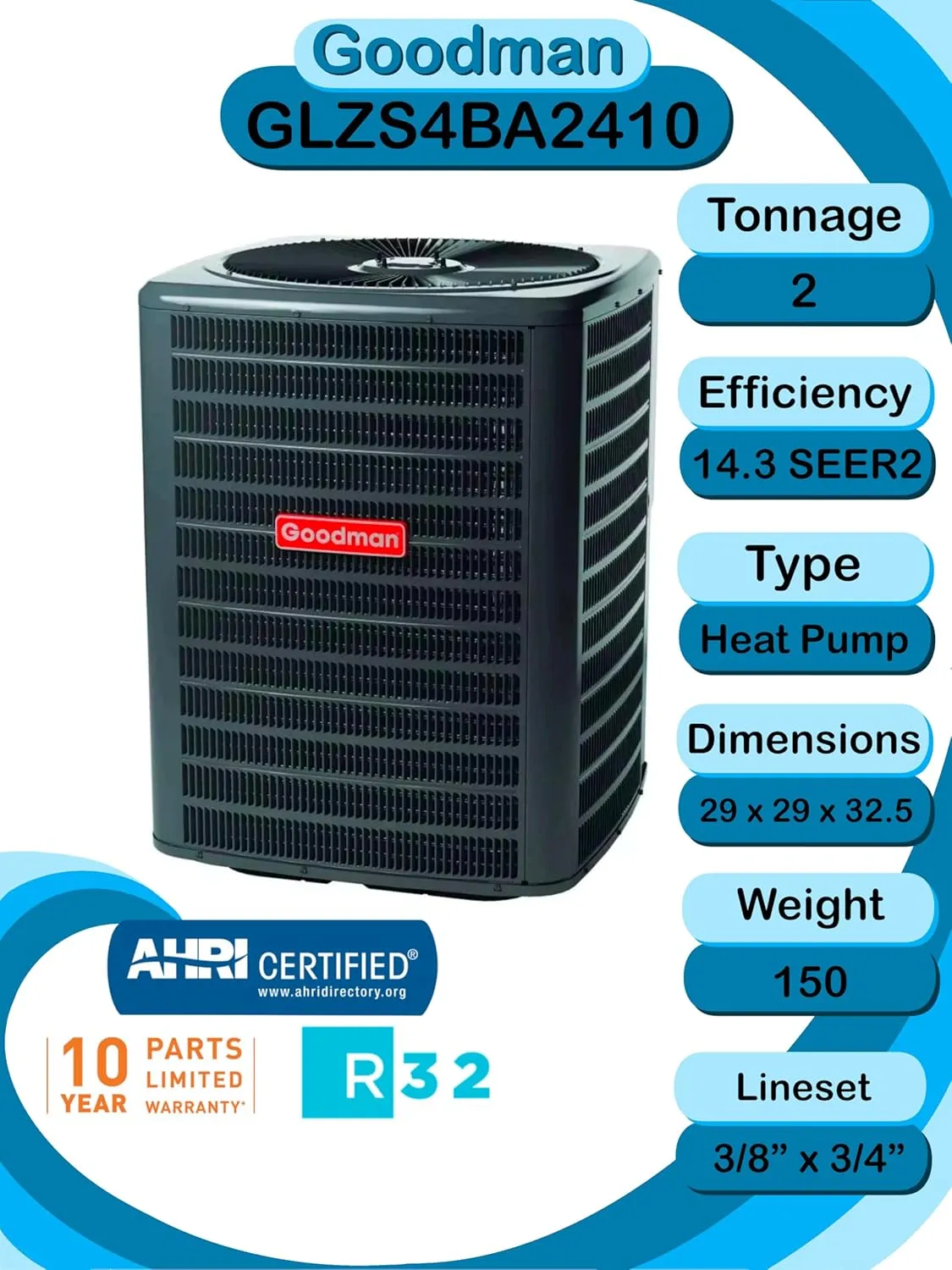

Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA2410

The Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA2410 will provide you with reliable cooling and heating at money-saving energy efficiency levels as compared to lower SEER heat pump units. Your Goodman heat pump condenser starts with an energy-efficient compressor, which operates in tandem with our high-efficiency coil. These high-quality components together cool and heat your home.

Standard Features:

• High-efficiency compressor

• SmartShift® technology to ensure quiet reliable defrost
• Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
• Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
• Single-speed PSC condenser fan motor
• Factory-installed bi-flow liquid-line filter drier
• Factory-installed suction-line accumulator
• Factory-installed compressor crankcase heater
• Factory-installed high-capacity muffler
• High- and low-pressure switches
• Service valves with sweat connections and easy access to gauge ports
• Fully charged for 15’ of tubing length
• Fully enclosed contactor with lug connection
• Ground lug connection
• Capacitors with extended life
• AHRI Certified; ETL Listed

Cabinet Features:

• Removable grille-style top design compliant with UL 60335-2-40
• Steel louver coil guard
• Heavy-gauge galvanized-steel cabinet
• Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
• Top and side maintenance access
• When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

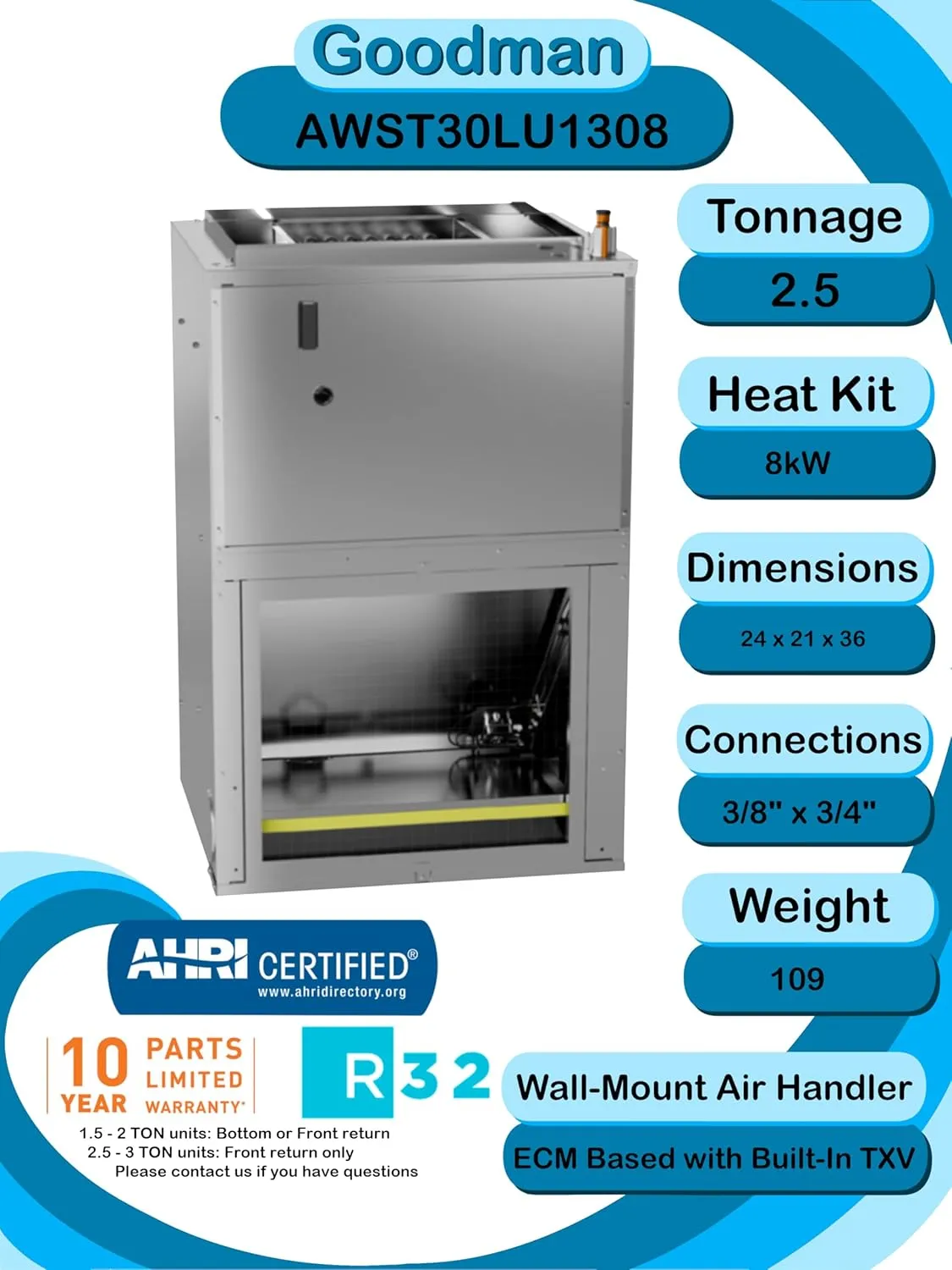

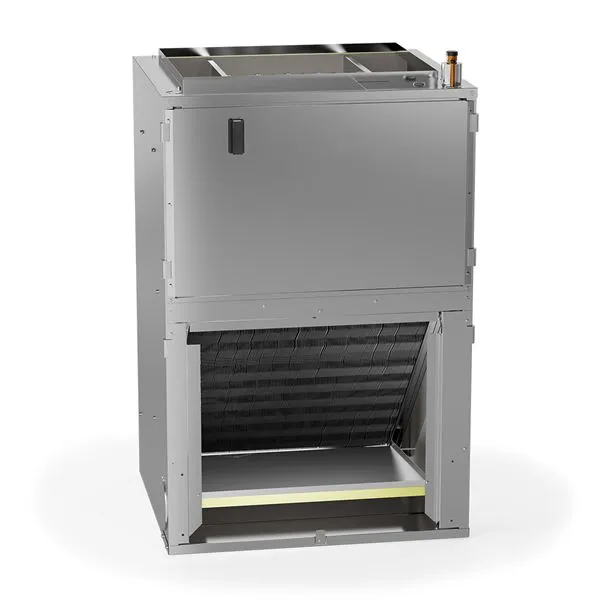

Goodman AWST30LU1308 2.5 Ton Wall Mount Air Handler with 8kW Electric Heat Kit (R-32) - 208/230-1-60

The Goodman AWST30LU1308 air handler is designed to be vertically wall- or stud-mounted. This unit is equipped with a fully adjustable TXV and direct-drive, multi-speed ECM blower motor. The AWST is housed in a fully insulated, galvanized-steel cabinet. Supports 2023 DOE energy efficiency standards. This product is UL60335 2-40 Compliant.

Features:

• AWST Models: Equipped with a fully adjustable TXV

• Direct-drive, multi-speed motors allows air volume variation for heating/cooling
• Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when tested in accordance with ASHRAE standard 193
• UL 60335 2-40 Compliant
• Factory installed R-32 sensor designed for the lifespan of the coil.
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when tested in accordance with ASHRAE standard 193
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom primary and secondary drain connections
• Built-in filter rack (filter included)
• Large chassis (2½- and 3-ton units) – front return only
• Small chassis (1½- and 2-ton units) – front or bottom return
• Wall-hanging bracket provided
• AHRI Certified; ETL Listed

What's Included:

• 1x Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA2410
• 1x Goodman AWST30LU1308 2.5 Ton Wall Mount Air Handler with 8kW Electric Heat Kit (R-32) - 208/230-1-60
• 1x FREE DiversiTech Condenser Mounting Pad ($139.99 Value)

Heat Pump Condenser Specifications:

Air Handler Specifications:
