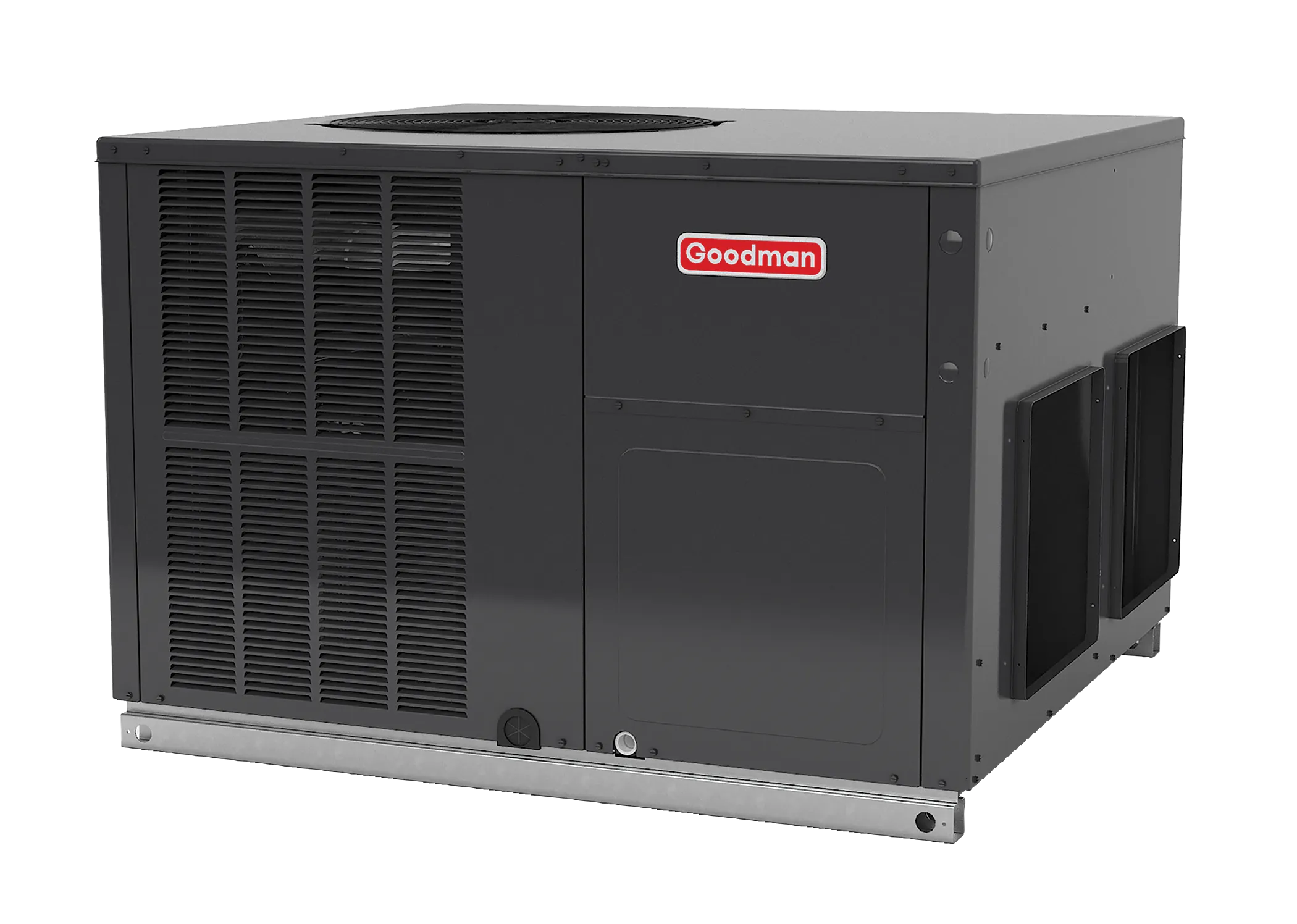

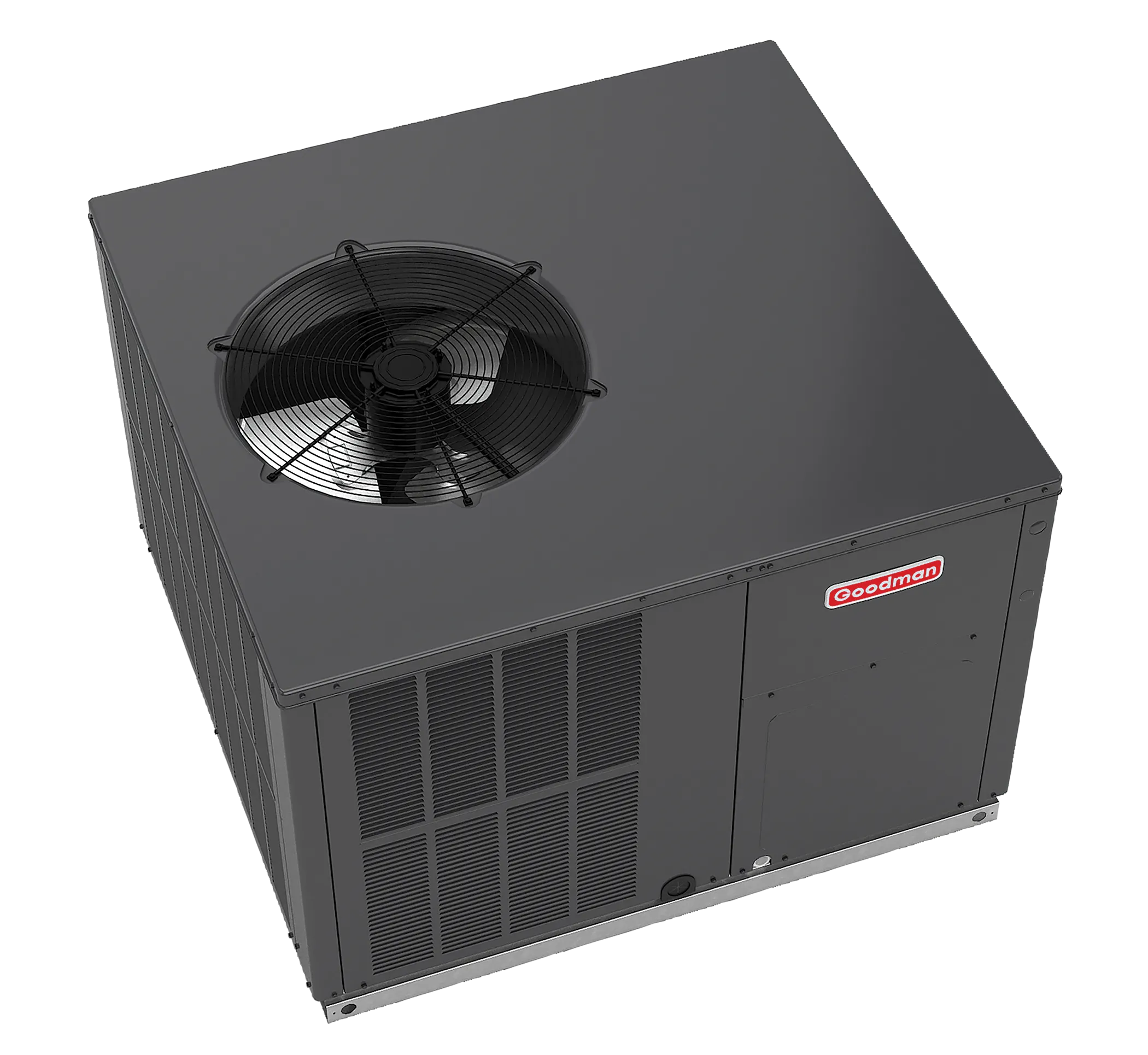

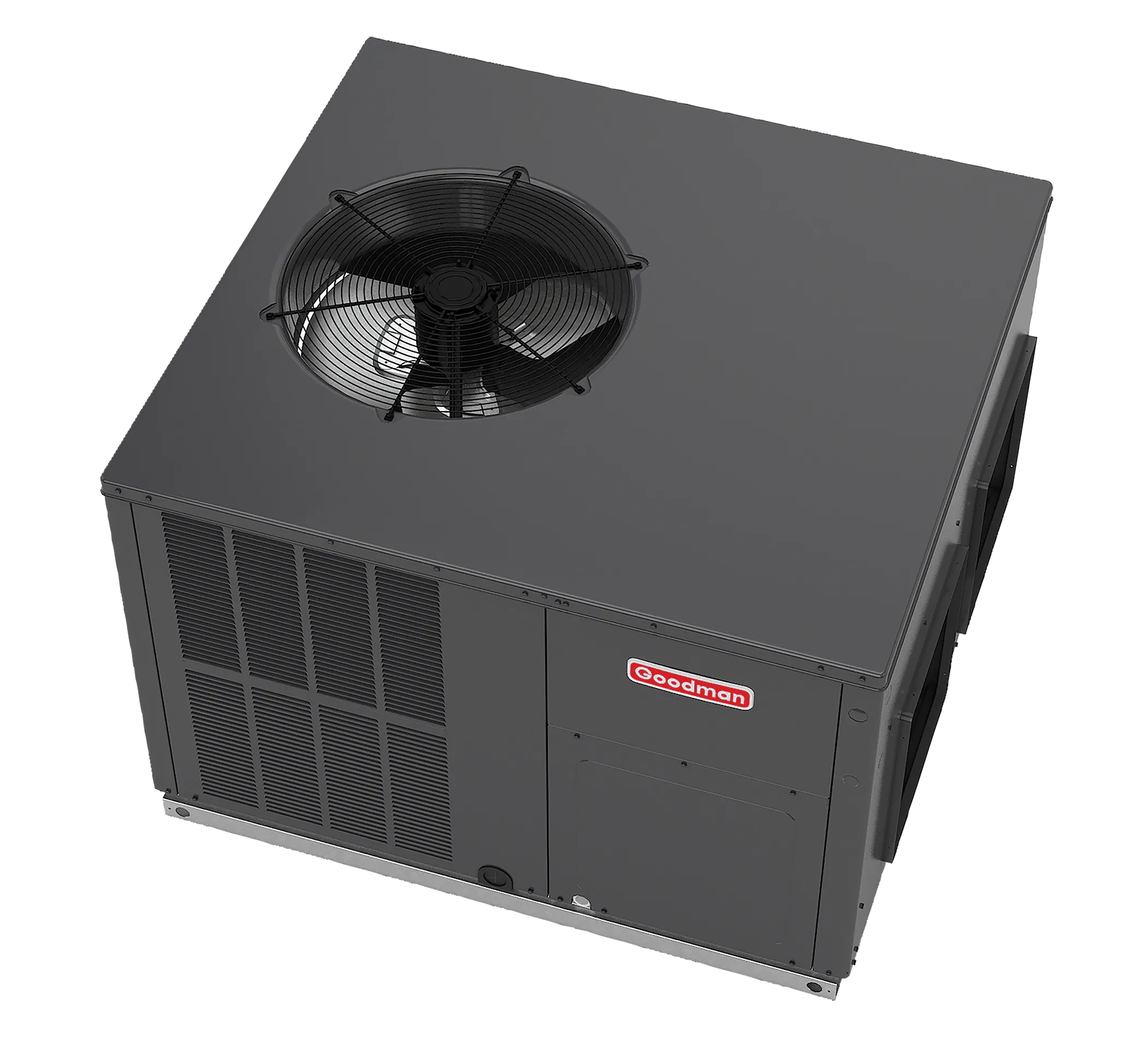

Goodman 4 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM34841
Experience unparalleled cooling comfort and efficiency with the Goodman 4 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM34841. Designed to deliver dependable and whisper-quiet performance, this unit seamlessly integrates the compressor, condenser coil, and blower fan into a single, compact package outside your home.
Crafted with a durable heavy-gauge, galvanized-steel cabinet, this air conditioner offers versatile installation options for horizontal or downflow delivery, ensuring adaptability to your specific needs. Its high-quality, UV-resistant powder-paint finish provides superior protection against the elements, guaranteeing years of trouble-free operation.
Equipped with highly efficient 13.4 SEER2 performance, this unit empowers homeowners and small businesses to enjoy powerful cooling while simultaneously reducing energy costs. Plus, with the option to add a field-installed heater coil (available in the "Optional Accessories" section), it offers versatile heating capabilities to meet your year-round comfort needs.
Rest assured, each unit undergoes rigorous factory testing and comes fully charged with refrigerant, making installation a breeze. Elevate your indoor environment with the Goodman 4 Ton 13.4 SEER2 Multi-Position Packaged Air Conditioner - GPCM34841, where comfort meets reliability.
Standard Features:
- Energy-efficient scroll compressor
- Multi-speed ECM indoor blower motor
- Convertible airflow: horizontal or downflow application
- Copper tube/aluminum fin condenser coil
- All-aluminum evaporator coil
- Electric heat kit available as a field-installed option
- AHRI Certified; ETL Listed
Cabinet Features:
- Heavy-gauge galvanized-steel cabinet with attractive Architectural Gray powder-paint finish
- Aluminum foil-facing internal insulation reinforced with fiberglass scrim
- Fully insulated blower compartment with convenient access panels
- Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193
- Louvered condenser coil protection
- One footprint for all tonnages
- When properly anchored, meets the 2020 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Specifications:
| Brand | Goodman |
| Model | GPCM34841 |
| Warranty | 10 Years Parts Warranty with online registration |
| Configuration | Multi-Position |
| Cooling Capacity |
Total BTU/h: 44,500 Sensible BTU/h: 34,500 SEER2 / EER2: 13.4 / 10.6 AHRI Numbers: 210286386 |
| Evaporator Motor |
Type: ECM Wheel (D x W): 10 x 9 Cooling CFM3: 1600 No. of Speeds: 5 Horsepower - RPM: 3/4 - 1,050 |
| Evaporator Coil |
Face Area (ft2): 6.2 Rows Deep: 4 Fins per Inch: 14 Metering Device Type: Piston Drain Size (NPT): 3/4" Refrigerant Charge (oz.): 102 |
| Condenser Fan |
Horsepower - RPM: 1/4 - 1,075 Fan Diameter: 22 # of Fan Blades: 3 |
| Condenser Coil |
Face Area (ft2): 15,36 Rows Deep: 1 Fins per Inch: 24 |
| Compressor |
Quantity: 1 Type: Scroll Stage: Single |
| Sound Power (dBA) | 82 |
| Electrical Data |
Compressor RLA/LRA: 19.9 / 110 Voltage/Phase (60 Hz): 208/230-1 Indoor Blower FLA: 5.4 Outdoor Fan FLA: 1.4 M.C.A.1: 31.7 M.O.P.2: 50 |
| Ship Weight (LBS) | 435 |
| Dimensions (W x D x H) | 47 x 51 x 42-3/4 |
| Duct Openings Dimensions |
Supply (W x H): 16 x 18 Return (W x H): 16 x 18 |
