Product Details
＋
Details

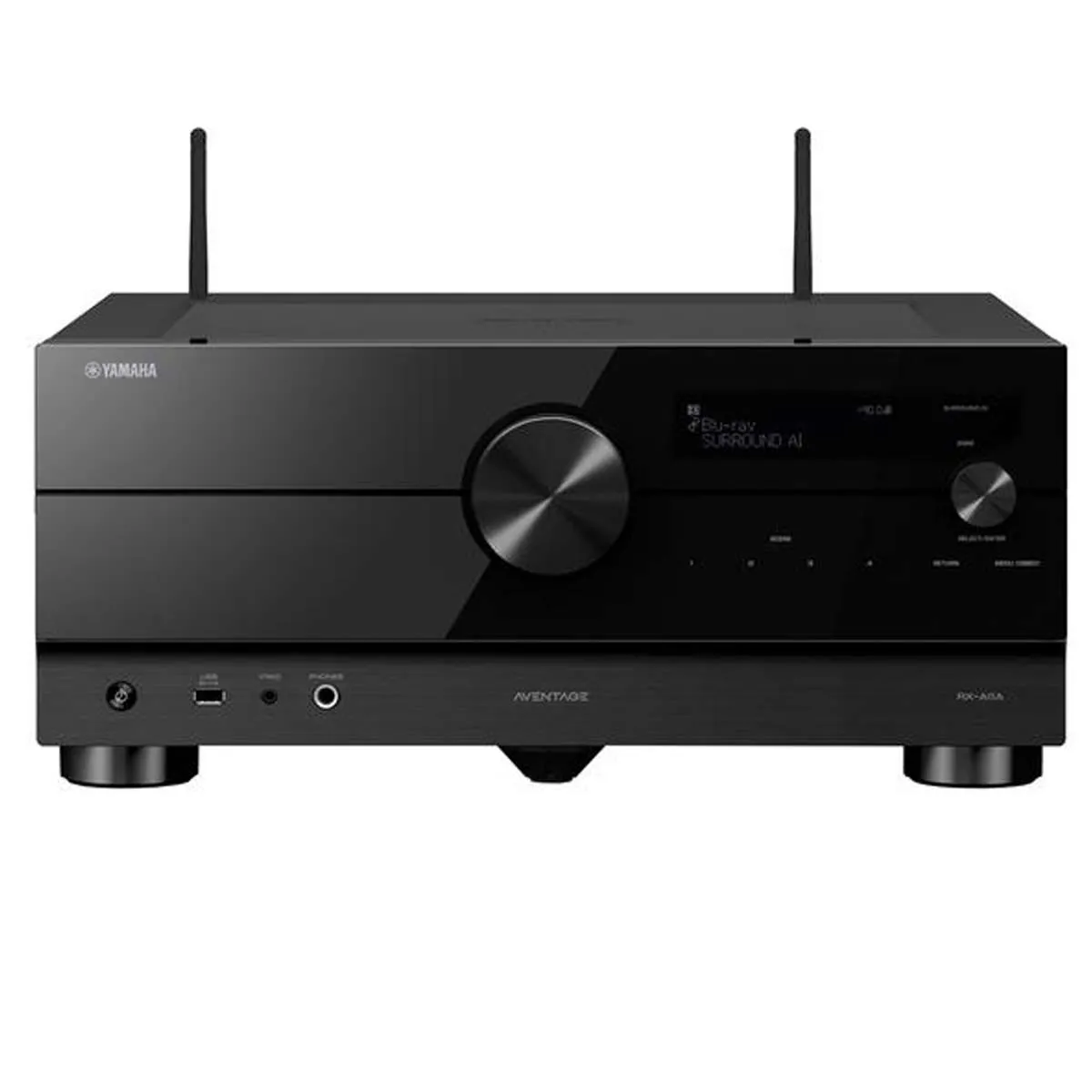

Home theater that's larger than life
Hear every sound, see every detail. The A6A has been carefully designed so every element of your entertainment is the best it can be. From slight whispers of sound to swift, on-screen movements, the A6A ensures you won’t miss a thing.
AVENTAGE AV receivers are the reference standard to which all others are compared. Passionate engineering and meticulous attention to detail produce the Yamaha hallmark of True Sound. You can feel the quality in the design and fabrication – from every electrical path, component and piece of material. Each element was scrutinized with intense detail to produce the finest, first-class performance. The AVENTAGE AV receiver is a work of visual and acoustic art.
- 9.2-channel (with 11.2-channel processing) 150-Watt surround sound with Zone 2/3/4
- 4K120 and 8K60 HDMI and HDR10 (with future update) with HDCP 2.3 and eARC (7 in/3 out)
- Dolby Atmos® with Dolby Atmos Height Virtualization and DTS:X® with CINEMA DSP HD3
- ESS SABRE ES9026PRO Ultra DAC for the ultimate high-performance conversion
- YPAO™- R.S.C. with 3D, multipoint measurement, precision EQ and low frequency mode
- Surround:AI™ technology automatically optimizes the sound and effects in real-time
- ALLM, VRR, QFT, QMS (with future update) and Dolby Vision™, Hybrid-Log Gamma and BT.2020
- AURO-3D (with future update)
- Wi-Fi, Bluetooth®, MusicCast multi-room audio, AirPlay 2 and Spotify Connect
- Voice control with Amazon Alexa, Siri® (via AirPlay 2) and Google Assistant
- Pandora, Spotify, Napster, SiriusXM, TIDAL, Deezer, Qobuz, Amazon Music HD
- 3rd-party control driver-capable, easy IP set-up and remote IP control
- Phono input
Specifications
AV Receiver
Amplifier Section- Channel 9.2
- Rated Output Power (20Hz-20kHz, 2ch driven) 150 W (8 ohms, 0.06% THD)
- High Slew Rate Amplifier Yes
Surround Sound Processing
- CINEMA DSP Yes
- DSP Programs 24
- Dialog Level Adjustment Yes
- Virtual Presence Speaker Yes
- Virtual Surround Back Speaker Yes
- Dialogue Lift Yes
- SILENT CINEMA / Virtual CINEMA DSP Yes
- Dolby Atmos Yes
- Dolby Atmos Height Virturalizer Yes
- Dolby TrueHD Yes
- Dolby Digital Plus Yes
- Dolby Surround Yes
- DTS:X Yes
- DTS-HD Master Audio Yes
Audio Features
- File Format MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
- Pure Direct Yes
- Compressed Music Enhancer Yes
- High-resolution Music Enhancer Yes
- YPAO multi-point measurement Yes
- YPAO Volume Yes
- Adaptive DRC (Dynamic Range Control) Yes
- Initial Volume & Maximum Volume Setting Yes
- A.R.T. Wedge Yes
- Bi-amp capability Yes
- Audio Delay Yes (0-500 ms)
- DA Converter 384 kHz / 32-bit ESS Hyperstream - 1 x ES9007ES 1 x ES9026PRO
Video Features
- HDMI eARC Yes
- HDMI Audio Return Channel Yes
- HDMI Pass-through 4K120AB*, 8K60AB* and 4K60 (*via future update)
- HDMI Up-scaling Yes up to 8K
- HDMI Up-conversion Yes
- Dolby Vision Yes
- HDR 10 Yes (via future update)
- VRR/ALLM/QMS/QFT Yes (via future update)
- Video adjustment Yes

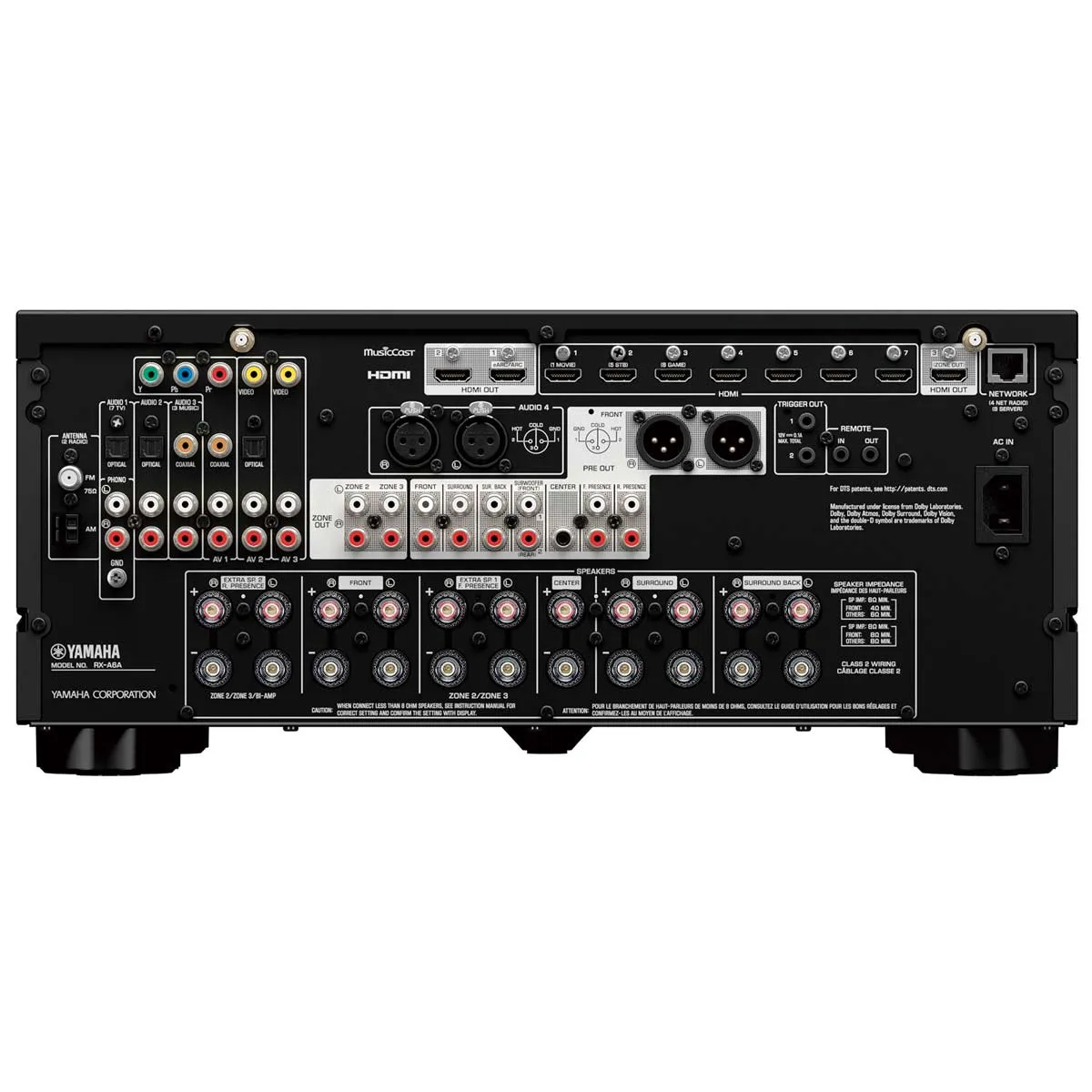

Connectivity
- MusicCast Surround Yes
- HDMI Input/Output 7 / 1
- HDMI CEC Yes
- USB Input Yes
- Network Port Yes
- Wi-Fi Yes (2.4 / 5 GHz)
- AirPlay 2 Yes
- Bluetooth Yes (SBC / AAC)
- Front AV Input USB
- Digital Audio Input/Output: Optical 1 / 0
- Digital Audio Input/Output: Coaxial 1 / 0
- Analog Audio Input/Output 4 / 0
- Phono Input Yes
- XLR Terminal Yes
- Component Video Input/Output 1/0
- Composite Video Input/Output 2/0
- Preout 11.2-ch
- Headphone Output 1
Tuner Section
- FM/AM Tuner Yes
- On-screen display Graphical User Interface
- SCENE Yes (8 sets)
- App Control Yes (iPhone / iPad / Android phone / tablet)
- Web Browser Control Yes
- Remote Control Unit Yes
Zone Control
- Zone 2 Audio Output Pre-out/HDMI
- Zone 3 Audio Output Pre-out
- Zone 4 Audio Output HDMI
- Powered Zone Zone 2/3
- Zone Video Output HDMI
- Zone B Output HDMI
- Zone GUI Yes
- RS-232C Interface N/A
- 12V Trigger Output 2
- Remote (IR) Input/Output 1 / 1
- Party Mode Yes
General Standby
- Power Consumption (IR only) <0.4 W
- Auto Power Standby Yes
- ECO mode Yes
Dimensions
- (W x H x D) 435 W x 171 H x 372 D mm (with antenna up:435 W x 245 H x 372 D mm)
Weight
- 10.2 kg.
